Overview - Coolant Pipes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

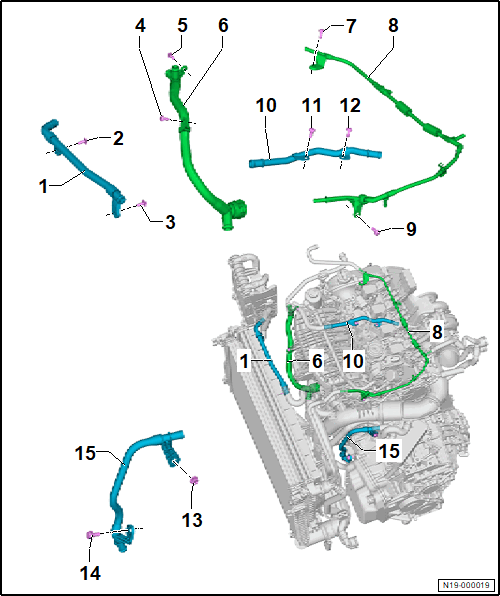

Fig 1: Exploded View Of Coolant Pipes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coolant Pipe on the Fan Shroud
- Refer to Coolant Pipe on Fan Shroud, Removing and Installing .
Bolt
- 6 Nm
Bolt
- 6 Nm
Bolt
- 9 Nm
Bolt
- 9 Nm
Front Coolant Pipe
- Refer to Front Coolant Pipe, Removing and Installing .
Bolt
- 9 Nm
Coolant Ventilation Line
Bolt
- 9 Nm
Upper Coolant Pipe
- Refer to Upper Coolant Pipe, Removing and Installing .
Bolt
- 9 Nm
Bolt
- 9 Nm
Nut
- 9 Nm
Bolt
- 9 Nm
Coolant Pipe on Transmission
- Refer to Coolant Pipe on Transmission, Removing and Installing .
