Coolant Pipe On Transmission, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Removing and installing the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the air filter housing. Refer to Air Filter Housing, Removing and Installing .

-- Clamp off the coolant hoses using the Hose Clamps - Up To 25mm:3094 .

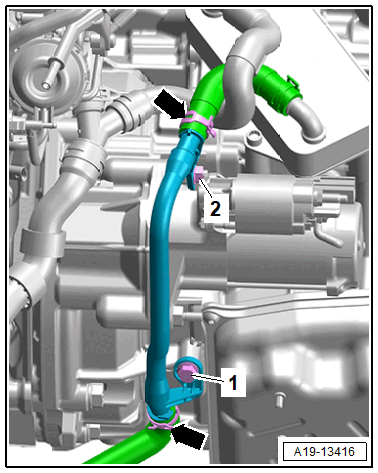

Fig 1: Coolant Pipe On Transmission - Tightening Specification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place a cleaning cloth underneath, to catch cleaning coolant leaking out.

-- Loosen the clamps -arrows- and remove the coolant hoses.

-- Remove the bolt -1-.

-- Remove the nut -2-.

-- Remove the coolant pipe from the transmission.
