System Overview - Refrigerant Circuit With Electrically-Driven A/C Compressor (With Or Without Battery Cooling Module)
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The arrows indicate the refrigerant flow direction.

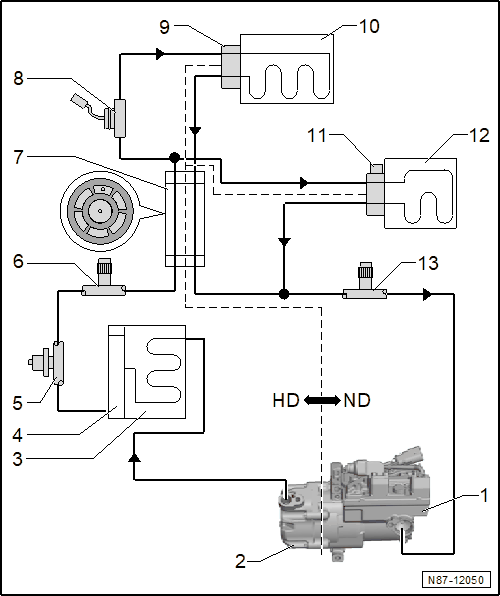

The following illustration shows a refrigerant circuit with an expansion valve and a second evaporator for cooling the battery and an inner heat exchanger as an example.
The layout of the refrigerant circuit is vehicle-specific. Refer to Refrigerant Circuit (vehicle-specific Service Information).
HD = High Pressure Side
ND = Low Pressure Side
- Electrically-Driven A/C Compressor
- With A/C Compressor Control Module -J842- and Electrical A/C Compressor -V470-. Refer to Refrigerant Circuit (vehicle-specific Service Information).
- Pressure Relief Valve
- Condenser
- With receiver/dryer and dryer cartridge.
- Receiver/Dryer
- Refrigerant Pressure Sensor
- Vehicle-specific versions. Refer to Refrigerant Circuit (vehicle-specific Service Information).
- Service Connection
- High-pressure side
- Refrigerant Line
- With inner heat exchanger
- Refrigerant Shut-Off Valve --
- There are different names. Refer to Refrigerant Circuit (vehicle-specific Service Information).
- Only on vehicles with a battery cooling module for the Hybrid Battery Unit -AX1-.
- Expansion Valve
- On the evaporator in the heater and A/C unit
- Evaporator
- In the heater and A/C unit
- :Expansion Valve with Shut-Off Valve
- There are different names. Refer to Refrigerant Circuit (vehicle-specific Service Information).
- On the evaporator in the battery cooling module
- Only on vehicles with a battery cooling module for the Hybrid Battery Unit -AX1-.
- Evaporator
- In the battery cooling module
- Only on vehicles with a battery cooling module for the Hybrid Battery Unit -AX1-.
- Service Connection
- Low-pressure side
