Restrictor, Transporter MY 2022, PHEV

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

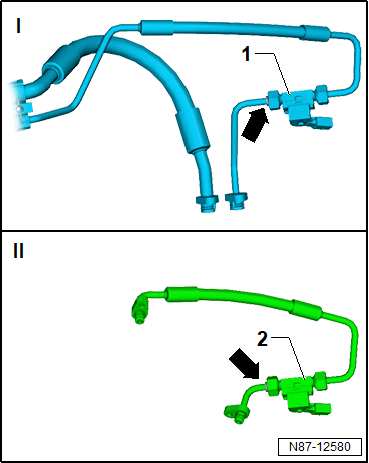

Overview of the installed refrigerant lines with restrictors.

GWWN87-12580Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I -  One Evaporator System

II -  Two Evaporator System

Arrow -  Restrictor

-- Drill open the restrictor -B- using a commercially available drill in direction of the -arrow A-.
