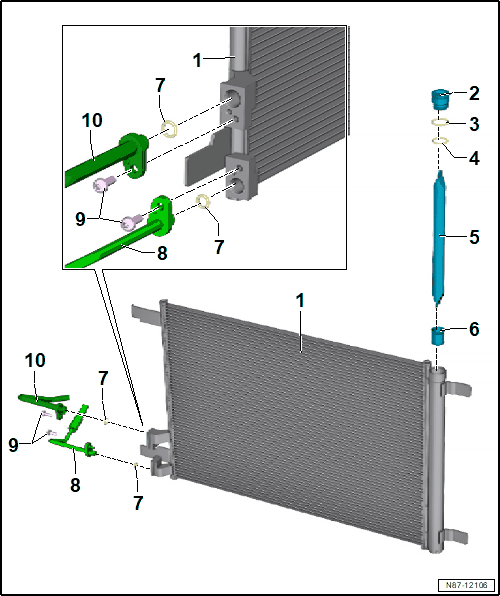

Overview - Condenser, DENSO
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Condenser
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- Plug
- Denso condenser 5 Nm
- Replace if damaged
- With seals
- There are different versions. Refer to the Parts Information.
- Seal
- Replace after removing.
- Coat with refrigerant oil before installing
- Seal
- Replace after removing.
- Coat with refrigerant oil before installing
- Desiccant Bag/Dryer Cartridge
- There are different versions. Refer to the Parts Information.
- Removing and Installing:
- Denso condenser. Refer to DESICCANT BAG, REMOVING AND INSTALLING, DENSO CONDENSER .
NOTE:Under certain conditions, the desiccant bag no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R1234yf. Refer to COMPONENTS, REPLACING .
Under certain conditions, the desiccant bag no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R134a. Refer to the appropriate Service Information .
- Filter
- There are different versions. Refer to the Parts Information.
- Seal
- Replace after removing.
- Coat with refrigerant oil before installing
- Refrigerant Line
- To the expansion valve
- Bolt
- 8 Nm
- Refrigerant Line
- From the A/C compressor
