Low Pressure Side Refrigerant Line Balance Weight, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

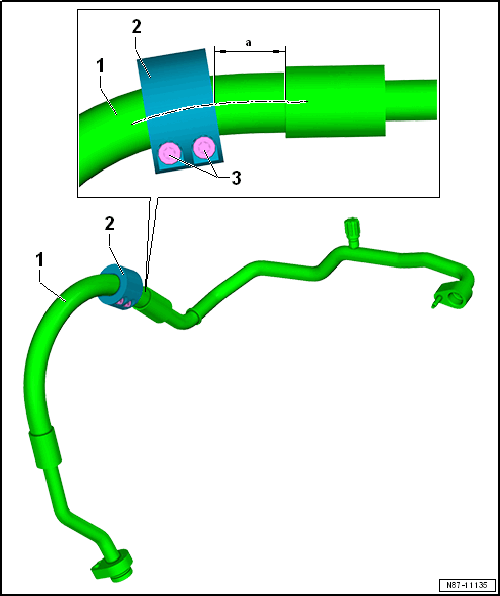

GWWN87-11135Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

-- Remove the balance weight -2- from the refrigerant line - low pressure side -1-.
