Rear Display And Control Head, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

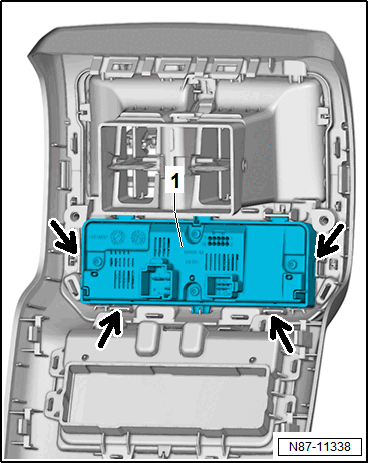

-- Unclip the Rear A/C Display Control Head -E265- -1- at the retainers -arrows-.

GWWN87-11338Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
