Rear Center Console Vent Air Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
NOTE:
If no rear vent is installed in the vehicle, there is a cap -1- on the air distribution housing. The cap -1- is removed in the direction of -arrow A-.

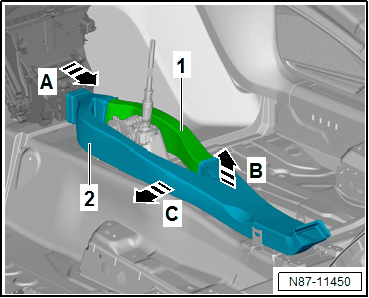

-- Remove the air duct -1-.
-- Pivot the air duct -2- upward in the direction of -arrow B- and then to the side in the direction of -arrow C-.
-- Remove the air duct -2- in the direction of -arrow A-.
