Center Vent Air Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
-- Remove the air duct for the defroster vent. Refer to AIR DUCT FOR DEFROST AIR VENT, REMOVING AND INSTALLING .

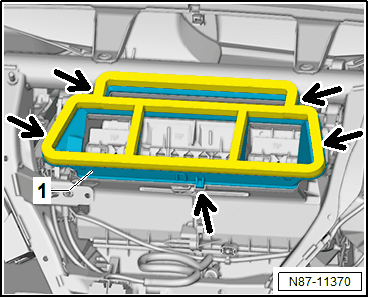

-- Pry out the tabs -arrows-.
-- Remove the center vent air duct -1- from the heater and A/C unit.
