Air Intake Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel crossmember. Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
-- Remove the dust and pollen filter. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
-- Loosen the heater and A/C unit and pull slightly forward.

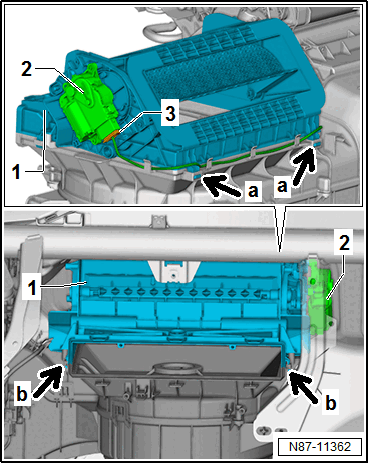

-- Disconnect the connector -3- from the adjustment motor -2-.
-- Release the mounting tab -b arrows-.
-- Pivot the air intake duct -1- upward and remove from the mounts -a arrows-.
