Rear Vent Temperature Sensor -G174-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Only for vehicles with Climatronic. For vehicles with an electric-manual climate control system, the openings in the air ducts are sealed with plugs.
-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

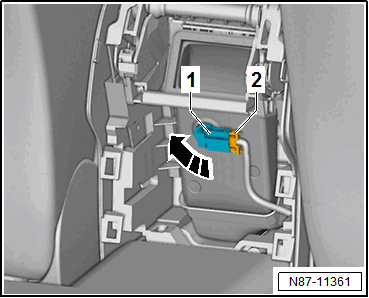

-- Disconnect the connector -2-.
-- Turn the vent temperature sensor -1- in the direction of -arrow- and remove it from the mount.
