Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .

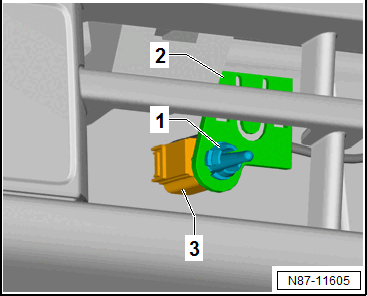

-- Unclip the Outside Air Temperature Sensor -G17- -1- from the bracket -2-.

GWWN87-11605Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3-.
