Heating and Air Conditioning Control Module -J979-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

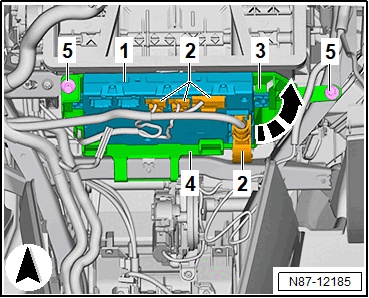

-- Release and disconnect the connectors -2-.
-- Press the hooks -3- back and slide the Heating and Air Conditioning Control Module -J979- -1- over the hooks -3-.
-- Remove the Heating and Air Conditioning Control Module -J979- -1-.
-- Ion order to remove the bracket -4-, loosen the expanding rivet -5- and remove the bracket -4-.
