Rear Temperature Control Door Motor -V137-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off all electrical equipment.

-- Switch off the ignition.

-- Remove the ignition key.

-- Remove the center console. Refer to OVERVIEW - CENTER CONSOLE .

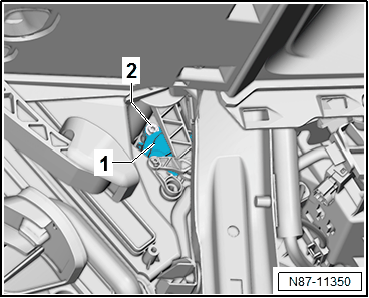

-- Remove the bolt -2- from the Rear Temperature Control Door Motor -V137- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

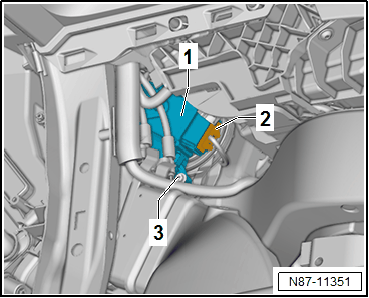

-- Remove the bolts -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Remove the Rear Temperature Control Door Motor - V137- -1-.
