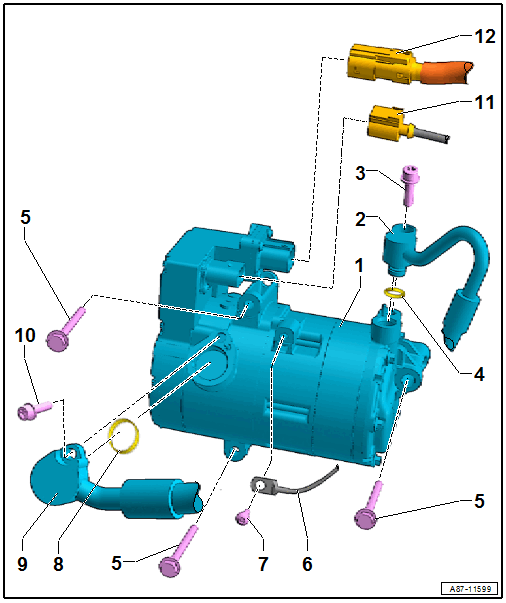

Overview - A/C Compressor, GTE
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- A/C Compressor -VX81-
- With Electrical A/C Compressor -V470-
- With A/C Compressor Control Module -J842-
- Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .
- Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
- High Pressure Side Refrigerant Line
- Bolt
- 22 Nm
- Seal
- To replace, refer to REFRIGERANT CIRCUIT SEALS and to the Parts Information for the correct version.
- Before installing, coat with refrigerant oil on a sponge.
- Bolt
- 23 Nm
- Quantity: 3
- Potential Equalization Cable
- Check the contact surface before installation and clean if necessary
- Bolt
- 9 Nm
- Seal
- Replacing. Refer to REFRIGERANT CIRCUIT SEALS .
- Version. Refer to the Parts Information
- Before installing, coat with refrigerant oil on a sponge.
- Low Pressure Side Refrigerant Line
- Bolt
- 22 Nm
- 8-Pin Connector
- High-Voltage Cable
- To the Electric Drive Power and Control Electronics -JX1- (with High-Voltage Battery Charger Control Module -J1050-)
