OVERVIEW - A/C COMPRESSOR WITH A/C Clutch -N25-
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

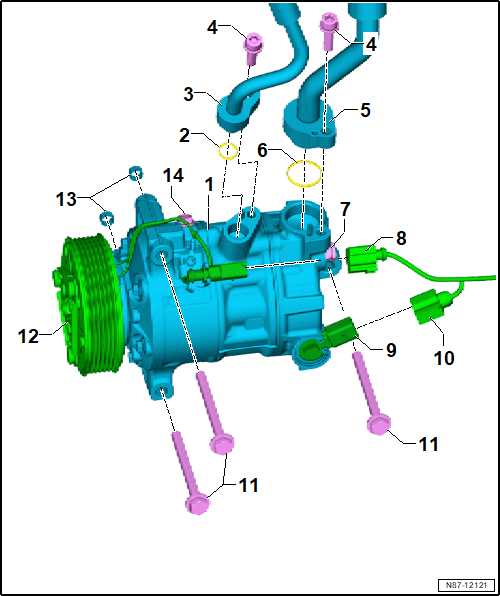

- A/C Compressor
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
- Removing from and attaching to the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .
- Seal
- Replace after removing
- There are different versions. Refer to the Parts Information.
- Coat with refrigerant oil before installing.
- High Pressure Side Refrigerant Line
- Bolt
- 22 Nm
- Low Pressure Side Refrigerant Line
- Seal
- Replace after removing
- There are different versions. Refer to the Parts Information.
- Coat with refrigerant oil before installing.
- Pressure Relief Valve
- A/C Clutch -N25- Connector
- A/C Compressor Regulator Valve -N280-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to Wiring Diagram.
- A/C Compressor Regulator Valve -N280- Connector
- Bolt
- 25 Nm
- Belt Pulley with A/C Clutch -N25-
- There are different versions. Refer to the Vehicle Diagnostic Tester.
- Alignment Sleeve
- Quantity: 2
- Oil Drain Plug
- Denso A/C compressor 30 Nm
- Mahle/Delphi A/C compressor 20 ± 1 Nm
- Sanden A/C compressor 15 ± 1 Nm
- Replace the oil drain plug/seal after removal
- If the oil drain plug is not a replacement part - do not remove the oil drain plug.
- Only remove on an empty refrigerant circuit.
- There are different versions. Refer to the Vehicle Diagnostic Tester.
