Brake Pads, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Brake Bleeding Tool Set:VAS 6564

Fig 1: Identifying Tool Set : VAS6564 For Brake Bleeding
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1331 Insert - Ratchet Head:VAS 6784

Fig 2: Torque Wrench 1331 Insert - Ratchet Head
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hex Bit - 7mm:T10503

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Piston Resetting Tool:T10145

Fig 3: Identifying Piston Resetting Tool T10145
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Fig 4: Torque Wrench 1331 Insert - Ratchet Head
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Multi-Link Suspension Installation Position:

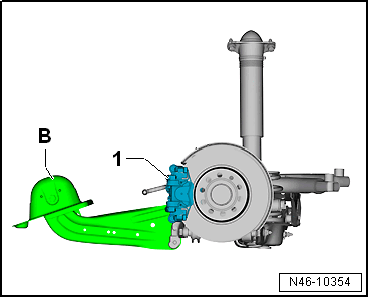

Fig 5: Multi-Link Suspension Installation Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Brake Caliper

B - Multi-Link Suspension
