Brake Pads, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

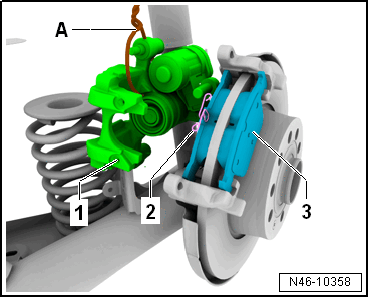

-- Install the inner brake pad -2- and outer -3- in the brake carrier.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

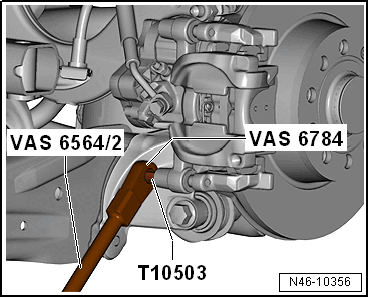

-- Attach the brake caliper.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

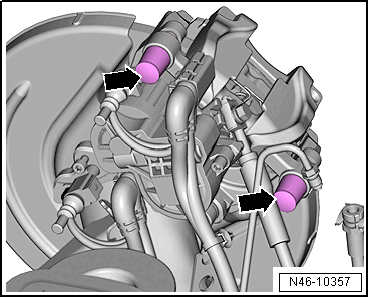

-- Install the caps -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

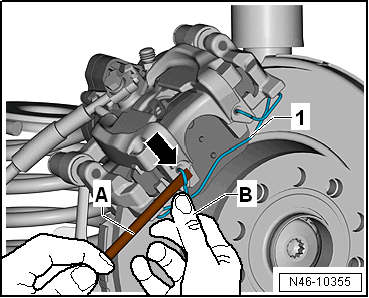

-- Install the brake pads spring -1- in the brake caliper opening -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Make sure that the spring is seated correctly in the holes on the brake caliper.

After the pistons have been driven out, the basic setting must take place with the brake system using the Vehicle Diagnostic Tester.

-- Perform the basic setting of the brake system using the Vehicle Diagnostic Tester.

-- Install the wheels.

CAUTION:

Check the brake fluid level after replacing the brake pad.
