Left And Right Parking Brake Motor -V282- / -V283-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Deactivate drive ready mode and switch off all electrical equipment.

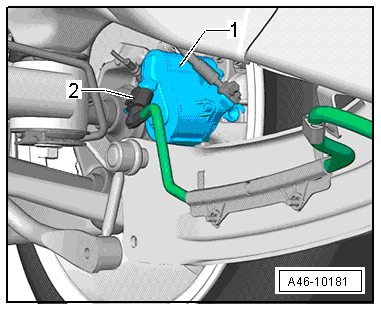

-- Remove the connector -2- from the parking brake motor -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove both hex socket bolt -arrows- from the parking brake motor.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the parking brake motor from the brake caliper, while doing so turn the parking brake motor back and forth.

-- Remove the seal.

CAUTION:

Be careful not to damage the ring groove on the seal and the contact surface on the parking brake motor.
