Left And Right Parking Brake Motor -V282- / -V283-, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Clean the parking brake motor ring groove and contact surface.

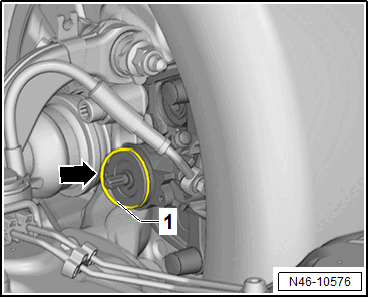

-- Lightly grease the new seal -1- and then install it. At the same time do not turn or damage the seal -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Completely grease the TORX^® socket on the parking brake motor drive axle.

CAUTION:

Do not remove the gasket when assembling the parking brake motor.

-- Carefully push the parking brake motor on the brake caliper while doing so pay attention that the seals are seated correctly.

-- Rotate the parking brake motor until the bolt hole and threads are aligned.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

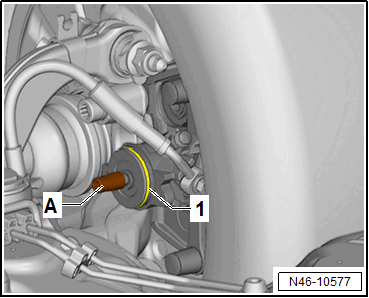

-- If necessary, slightly turn back the drive axle using a E11 TORX^® socket -A- to correctly position the parking brake motor.

-- Make sure that the parking brake motor is seated flush against the brake caliper. Do not, under any circumstances, pull the parking brake motor against the brake caliper using the bolts.

-- Set the hex socket bolts -arrows- in place by hand and then tighten.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the connector -1-.

-- Perform the basic setting of the brake system using the Vehicle Diagnostic Tester.
