Brake Pads, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Label the brake pads when removing if they are going to be used again. Install in the same position, otherwise the braking effect will be uneven.

-- Remove the wheels.

-- Disconnect the brake pad wear indicator connector.

The brake pad wear indicator is installed on the front right side.

-- Counterhold the guide pin and remove both bolts from the brake caliper.

Fig 1: Installing Brake Caliper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake caliper -1- and secure it with a wire so that the weight of the brake caliper does not stress or damage the brake hose.

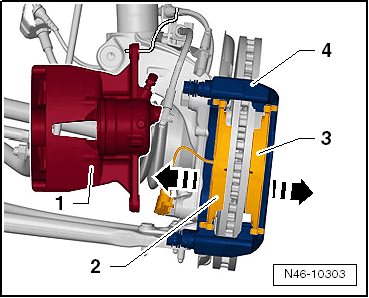

Fig 2: Identifying Brake Pads

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake pads -2 and 3- from the brake carrier -4-.

Cleaning:

CAUTION:

Health risk due to toxic dust from the brake system.

Irreversible deposit of dust particles in the lungs. Breathing impairments may occur.

- Never blow out the brake system with compressed air.

-- Thoroughly clean the contact surfaces for the brake pads on the brake carrier; remove any corrosion.

-- Clean the brake caliper.

CAUTION:

Use only mineral spirits to clean the brake caliper.
