Brake Caliper, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the wheels.

-- Disconnect the brake pad wear indicator connector.

-- Attach the bleeder bottle bleed hose -1- to the brake caliper bleed valve.

Fig 1: Identifying Bleed Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the bleeder valve.

-- Insert the Brake Pedal Actuator:VAG1869/2 .

Fig 2: Brake Pedal Depressor VAG 1869/2 Inserted Between Brake Pedal And Driver's Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the bleeder valve and remove the bleeder bottle.

-- Remove the brake hose.

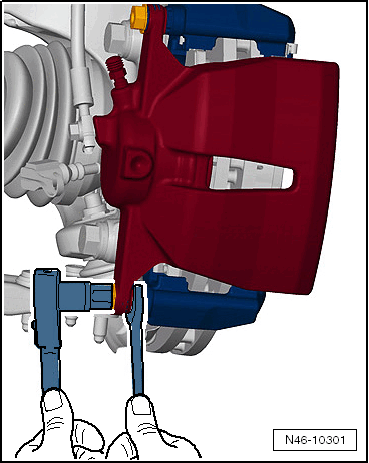

-- Counterhold the guide pin and remove both bolts from the brake caliper.

Fig 3: Installing Brake Caliper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake caliper from the brake carrier.
