Mounting Bracket, Removing And Installing, RHD: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

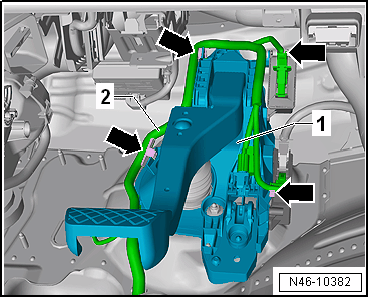

-- Route the wiring harness -2- correctly so that it is not pinched.
-- Clip in the wiring harness -2- on the mounting bracket -1- -arrows-.
-- Connect the brake pedal with the brake booster. Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER .
