Dust Cap, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Only clean the surfaces on the pistons and brake caliper with mineral spirits and then dry.

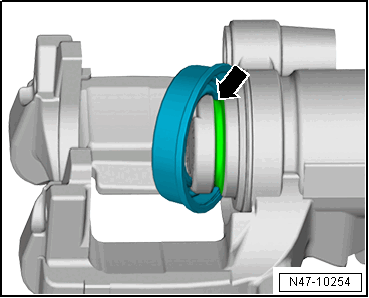

-- Place the protective cap in the groove -arrow- on the piston.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

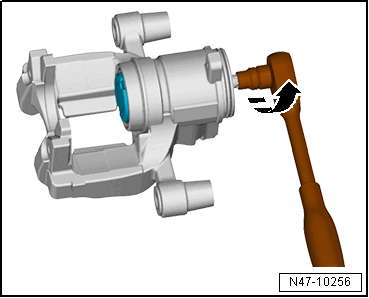

-- Re-install the piston in the direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

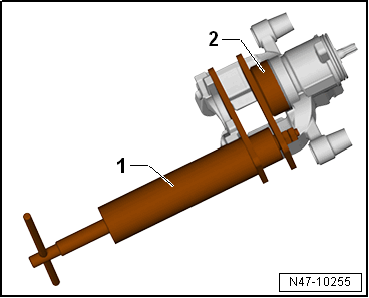

-- Push the protective cap on the brake caliper with the Seal Installer - Camshaft O-Ring:T10502 -2- and the Piston Resetting Tool:T 10145 -1- so that the protective cap is all around the brake caliper.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
