Brake Caliper Piston, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

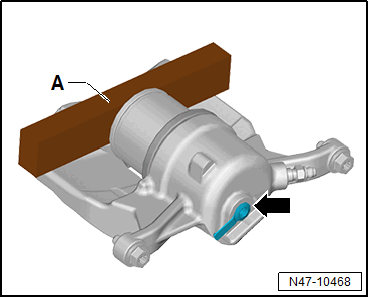

Place a wooden board -A- into the recess so the piston is not damaged
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Push the piston out of the brake caliper using compressed air -arrow-.

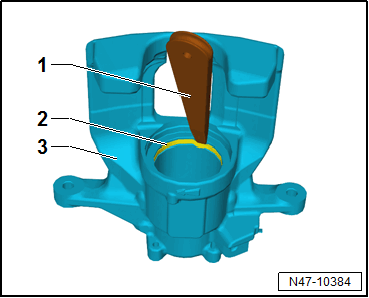

-- Remove the seal -2- using the Trim Removal Wedge:3409
-1-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
When removing, make sure that the cylinder surface is not damaged.
