Brake Caliper Piston, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Only clean the surfaces of the pistons and seal with mineral spirits and then dry.

-- Before inserting coat the pistons and seals thin with assembly paste G 052 150 A2.

-- Insert the seal into the brake caliper.

-- Place the cap with the outer sealing lip on the piston.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

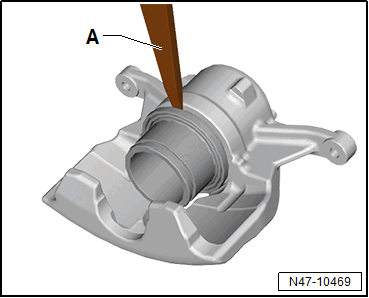

-- Insert the inner sealing lip in the cylinder groove using the Trim Removal Wedge:3409 -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

At the same time hold the piston in front of brake caliper.

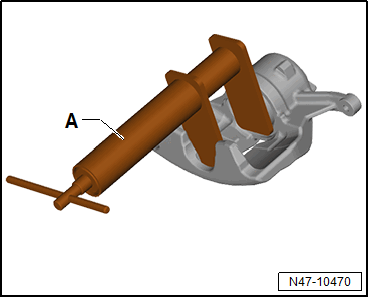

-- Press the piston into the brake caliper using the Piston Resetting Tool:T10145 -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Outer sealing lip of protective cap will then engage in the piston groove.
