Overview - Rear Speed Sensor, Fwd

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

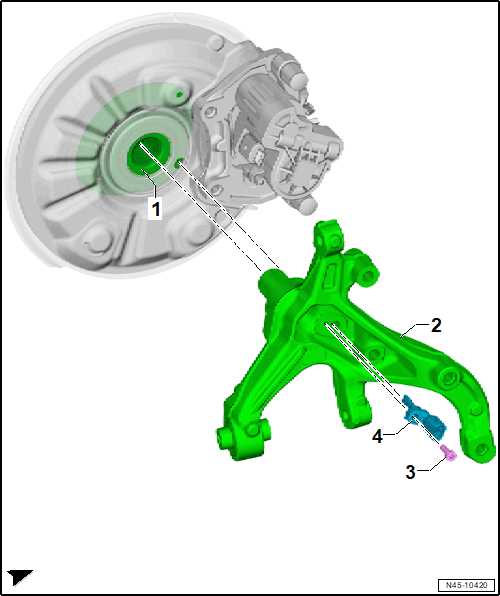

Fig 1: Exploded View Of Rear Speed Sensor, Vehicles With Multi-Link-Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Wheel Hub with Wheel Bearing Unit
- The ABS sensor ring is integrated in the wheel bearing unit
- Check the ABS sensor ring. Refer to ABS SENSOR RING, CHECKING .
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
Wheel Bearing Housing
- Overview. Refer to OVERVIEW - WHEEL BEARING .
Bolt
- 8 Nm
Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-
- Clean the inner surface of the hole before inserting the sensor
- Coat the inner surface with Hot Bolt Paste:G 052 112 A3
- Removing and Installing. Refer to RIGHT AND LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING .
