Rear Brakes
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
The respective PR number on the vehicle data label describes which brake system is installed in the vehicle, among other things.

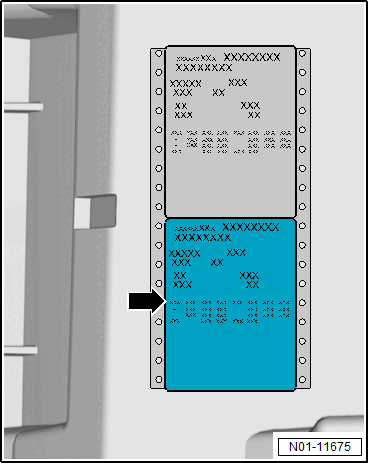

The vehicle data label is located in the spare wheel well and in the maintenance schedule.
-- Information about the installed brake can also be retrieved via ELSA/Vehicle-Specific Notes.
In this example, the vehicle has "1KU" rear brakes.
- Refer to the appropriate Electronic Parts Information for the allocation.
- The following tables explain the PR numbers. The table is important for the brake caliper/brake rotor and brake pad combination.
| PR Number | Rear Brakes | |
| 1KU | FN c - M42 (16) | |
| 2EM | FN c - M42 (16) | |
| 2EA | FN c - M42 (16) blue | |
| 1KZ | FN c - M42 (17) | |
| 2 ER | FN c - M42 (17) | |
