Stabilizer Bar, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

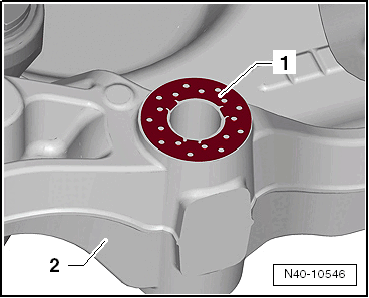

-- Always make sure the intermediate plate -1- is installed between the subframe -2- and the body.
NOTE:
The level control system sensor lever must point toward vehicle exterior.
The thread on the level control system sensor must be installed into the exterior hole in the control arm. The retaining tab on the level control system sensor must engage into the inner hole in order to assure a correct installation position.

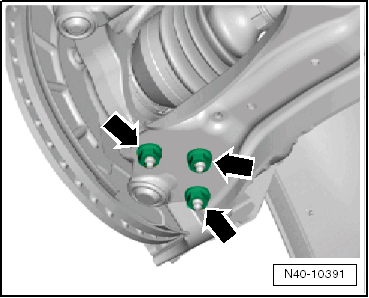

-- Tighten the nuts -arrows-.
-- For vehicles with a level control system sensor, perform the basic setting using the Vehicle Diagnostic Tester.
