Overview - Stabilizer Bar

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

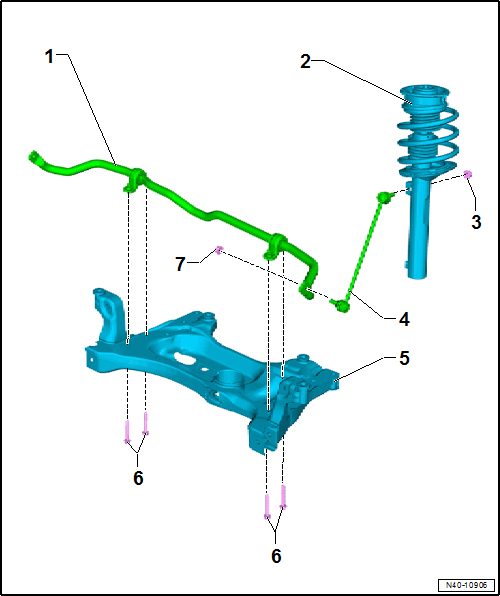

Fig 1: Exploded View Of Stabilizer Bar

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Stabilizer Bar
- with rubber bushing
- Removing and Installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING .
Suspension Strut
Nut
- Counterhold at socket head of the joint pin when tightening
- Always replace after removing
- 80 Nm
Coupling Rod
- Removing and Installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Lowering. Refer to SUBFRAME, LOWERING .
- Removing and Installing, without Steering Gear. Refer to SUBFRAME WITHOUT STEERING GEAR, REMOVING AND INSTALLING .
- Removing and Installing, with Steering Gear. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
Bolt
- Always replace after removing
- 20 Nm +180°
Nut
- Counterhold at socket head of the joint pin when tightening
- Always replace after removing
- 80 Nm
