Coupling Rod, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Raise the vehicle.

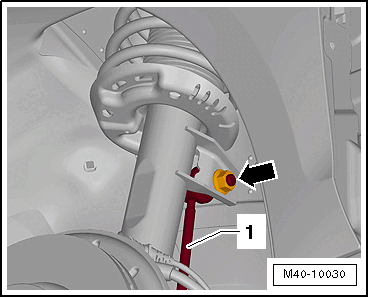

-- Remove the nut -arrow- and the coupling rod -1- from the suspension strut.

Fig 1: Identifying Coupling Rod And Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hex nut -1- from the coupling rod -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coupling rod -3- from the stabilizer bar -2-.
