Front Lower Control Arm Bonded Rubber Bushing, Replacing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Wishbone Rubber Mount Assembly Tool:T10219

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Plate:VW 402

Fig 1: Press Plate VW402
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Rod:VW 411

Fig 2: Press Piece - Rod
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Multiple Use:VW 412

Fig 3: Identifying Press Piece - Multiple Use VW412
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .

Bonded Rubber Bushing, Pressing Out

-- Press out the bonded rubber bushings as shown.

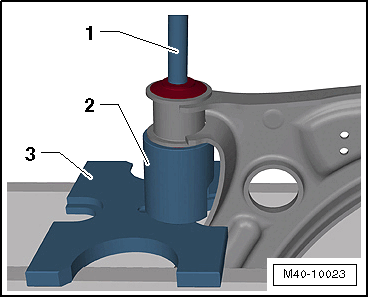

Fig 4: Identifying Press Piece, Press Plate And Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Press Piece - Rod:VW 411
Wishbone Rubber Mount Assembly Tool - Tube:T10219/1 the opening must face the control arm
Press Plate:VW 402

Bonded Rubber Bushing, Pressing In

Fig 5: Installation Position for the Front Bonded Rubber Bushing -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the bonded rubber bushing -1- with the control arm -2-.

The grooves -3- must point to the control arm -2- as shown.

-- Apply Installation Lubricant:G 294 421 A1 onto the outside of the bonded rubber bushing.

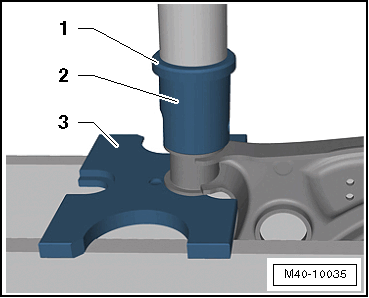

-- Install the bonded rubber bushing as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Wishbone Rubber Mount Assembly Tool - Drift:T10219/2
Bonded Rubber Bushing
Wishbone Rubber Mount Assembly Tool - Tube:T10219/1 the opening must face the control arm
Press Plate:VW 402

CAUTION:

The bonded rubber bushing will be crooked for a short time at the beginning of the installation. Later the bonded rubber bushing will straighten out. It will not be necessary to guide it.

-- Install the bonded rubber bushing until the core -1- and the control arm hole -2- are at the same height.

Fig 6: Installing Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

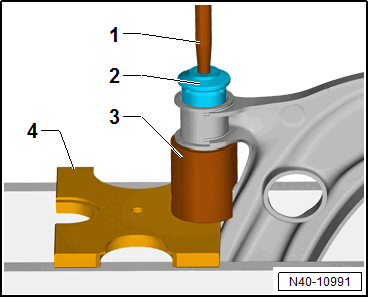

-- Press the bearing back slightly in the control arm.

Fig 7: Exploded View Of Drive Axle Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Press Piece - Multiple Use:VW 412
Wishbone Rubber Mount Assembly Tool -Tube:T10219/1
Press Plate:VW 402

Dimensions -a- and -b- must be identical.

Fig 8: Identifying Dimensions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the lower control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .
