Drive Axle, Removing And Installing, CV Joint VL 100 And VL 107: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the drive axle bolt. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .

CAUTION:

Damage to the wheel bearing from the vehicle weight with the wheel-side drive axle threaded connection loose.

- Do not load the wheel bearing if the wheel-side drive axle threaded connection is loose.

- Vehicles without drive axle may not be moved when resting on its wheels. Otherwise the wheel bearing will be damaged. If the vehicle has to be moved, pay attention to the following: install the outer joint. Tighten the outer joint to 120 Nm.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the hex nut -1- from the coupling rod -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coupling rod -3- from the stabilizer bar -2-.

Vehicles with Level Control System Sensor

Fig 1: Remove the Stone Chip Protection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the pins -arrows- inward and remove the expanding rivets -2-.

-- Remove the trim panel -1-.

-- Remove the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2- for the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289- from the control arm -3-.

Continuation for all vehicles

Fig 2: Identifying Nuts -Arrows- On Left And Right Side Of Vehicle, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows- from the ball joint.

-- Disengage the control arm from the ball joint.

Only for Right Drive Axle

-- If installed, remove the bolts -1- and the heat shield -2-.

Fig 3: Locating Drive Axle Heat Shield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Only for Bolted Drive Axles

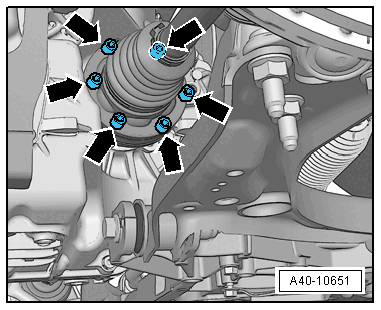

-- Remove the drive axle from the flange shaft/transmission -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Only for Attached Drive Axles

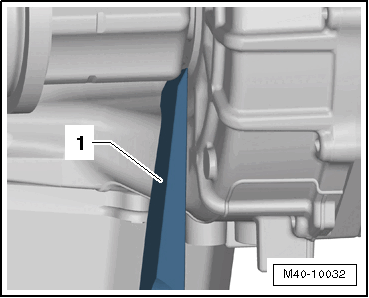

-- Place the Drive Axle Wedge Tool:T10161 -1- between the transmission housing and the triple roller joint.

Fig 4: Identifying Drive Axle Wedge Tool

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using a rubber hammer, hit the inner joint on the Drive Axle Wedge Tool:T10161 and remove it from the transmission.

Continuation for All Drive Axles

-- Push the wheel bearing housing to the left.

-- Pull the drive axle out of the wheel hub.

If the drive axle cannot be pulled out of the wheel bearing, then the drive axle can be pushed out of the wheel bearing using the Drive Shaft Remover:T10520A .

Before using the Drive Shaft Remover:T10520A , make sure that the thrust piece -1- is installed.

Fig 5: Locating Thrust Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Using the Drive Shaft Remover: T10520A :

Fig 6: Identifying Remover T10520

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the Drive Shaft Remover:T10520A -1- to the wheel hub using three wheel bolts -2-. Press out the drive axle -3-.

-- Follow the specified sequence exactly.

Fig 7: Drive Axle Loosening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I - Tighten the knurled nut -1- hand-tight.

II - Only turn the bolt -2- using a wrench. Remove the drive axle using the Drive Shaft Remover:T10520A .

NOTE:

At the end of the tasks or to set back, the spindles must be brought back into the original position so that the hydraulic operation can be used.

-- Remove the drive axle.
