Drive Axle, Disassembling And Assembling, CV Joint VL 107: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Press Plate:VW 401

Fig 1: Press Plate
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Plate:VW 402

Fig 2: Press Plate VW402
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Rod:VW 408 A

Fig 3: Press Piece - Rod
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CV Joint Press Sleeve:VW 522

Fig 4: CV Joint Press Sleeve VW522
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Clamping Pliers:V.A.G 1682 A

Fig 5: Clamping Pliers - Jaws
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

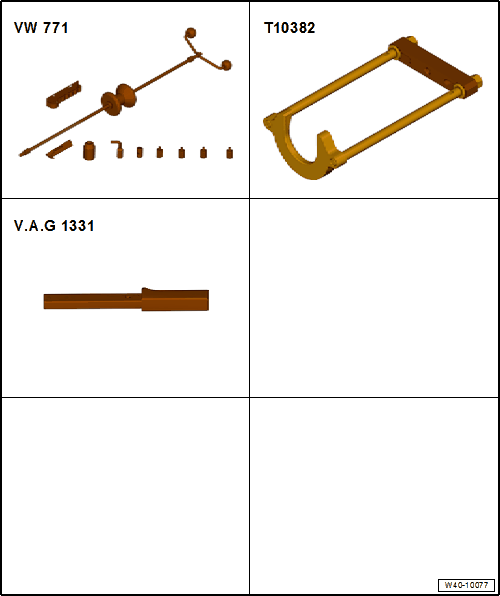

Special tools and workshop equipment required

Slide Hammer Set:VW 771
Puller - Drive Axle:T10382
