Outer CV Joint, Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Clamp the drive axle in a vise with jaw protectors.

-- Fold back the boot.

-- Align the Puller - Driveshaft:T10382 so that the flat side of the Puller - Driveshaft - Removing Plate:T10382/1 faces the Puller - Driveshaft - Spindles:T10382/2 .

-- Attach the Puller - Drive Axle:T10382 to the Slide Hammer Set:VW 771 .

-- Remove the CV joint from the drive axle using the Puller - Driveshaft:T10382 and Slide Hammer Set:VW 771 .

Fig 1: Identifying Outer CV Joint

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Puller - Drive Axle - Removing Plate:T10382/1
Puller - Drive Axle - Spindles:T10382/2

Outer CV Joint, Installing

-- Install the new circlips.

-- Slide the new CV boot onto the drive axle if necessary.

-- Use a plastic mallet to install it on the shaft until the circlip engages.

Inner CV Joint, Removing

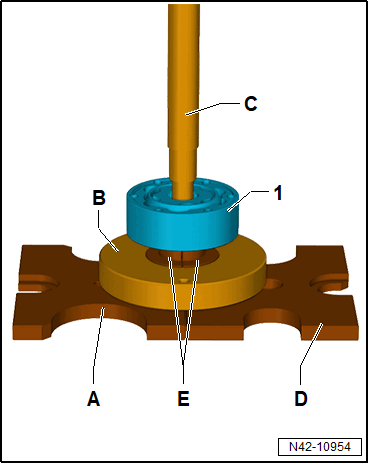

Fig 2: Inner CV Joint, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - CV Joint

A - Press Plate:VW 401

B - Assembly Tool:T10065/1

C - Press Piece - Rod:VW 408 A

D - Press Plate:VW 402

E - Tripod Joint Tool - Assembly Tool 4:T10065/4
