Drive Axle, Disassembling And Assembling, CV Joint VL 100: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

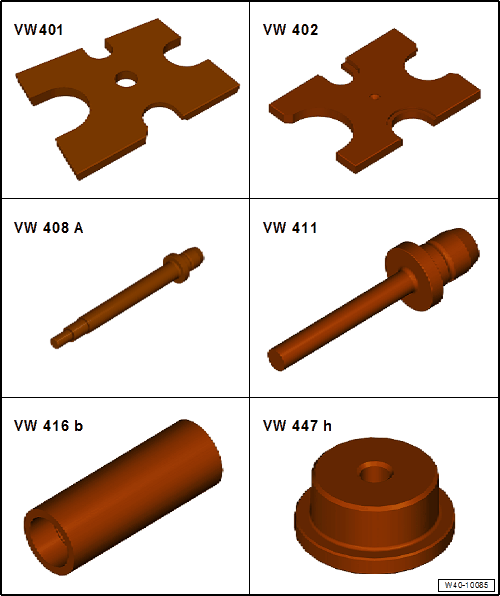

Special tools and workshop equipment required

Press Plate:VW 401
Press Plate:VW 402
Press Piece - Rod:VW 408 A
Press Piece - Rod:VW 411
Press Piece - 37mm:VW 416 B
Press Piece - Multiple Use:VW 447 H

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Circlip Pliers:VW 161 A
Clamping Pliers:V.A.G 1682 A
Tripod Joint Tool:T10065

Special tools and workshop equipment required

Slide Hammer Set:VW 771

Fig 1: Identifying Slide Hammer Set
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Drive Axle:T10382

Fig 2: Puller - Driveshaft
