Drive Axle Heat Shield, Removing And Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
FWD:
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
| Component |
Tightening Specification |
| Bolts -arrow- |
25 Nm |

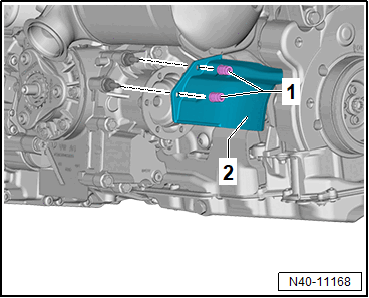

AWD:
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
| Component -2- |
Tightening Specification |
| Nuts -1- |
20 Nm |
