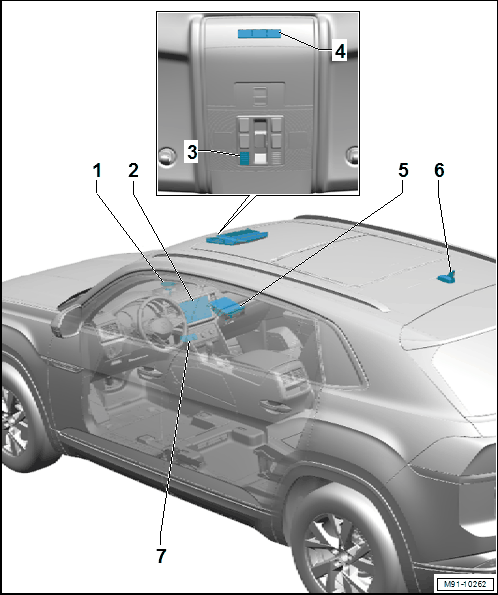

Component Location Overview - Mobile Online Services
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Emergency Call Module Speaker -R335-
- Inside the center of the instrument panel
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Composition Color: in connection with the Information Electronics Control Module 1 -J794-
- Composition Media, Discover Media: individual display
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and installing Composition Media, Discover Media. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Telephone Microphone -R38-
- In the Front Interior Lamp -WX1-
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
- Telematics Button Module -E734-
- Removing and Installing. Refer to Telematics Button Module -E734-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Only on Composition Media, Discover Media in glove compartment
- For Composition Color in connection with the Front Information Display Control Head -J685- in the center instrument panel
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and installing Composition Media, Discover Media. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Roof Antenna -RX5-
- With GPS Antenna -R50- and GSM Antenna -R205- (PR number EL2)/Emergency Call Module Antenna -R263- (PR number NZ3)
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Behind the Front Information Display Control Head -J685-
- Exchanging is not permitted
- Pay attention to the procedure for replacing the control modules. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REPLACING .
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
