Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the airbag unit with the Driver Airbag Igniter N95. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
-- Remove the lower decorative trim. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .

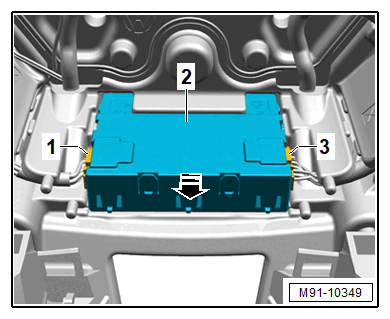

-- Disconnect the connectors -1- and -3-.
-- Remove the control module -2- in -direction of the arrow-.
