Front Information Display Control Head -J685- KNOBS, REPLACING

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

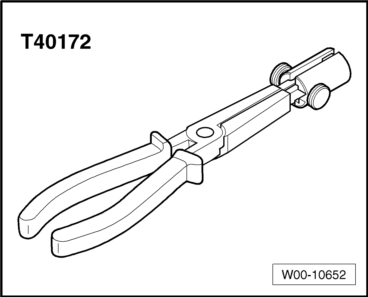

Pliers:T40172C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Replacing the knobs on the Front Information Display Control Head -J685- is only described for one version. Replacing the knobs on the Front Information Display Control Head -J685- for all other versions is similar.
Replacing the knobs on the Front Information Display Control Head -J685- takes place while installed.

Procedure

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

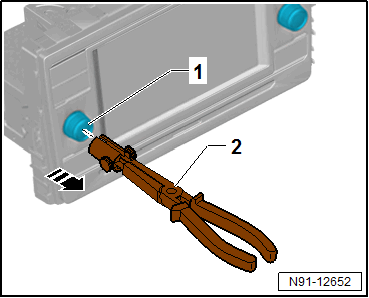

-- Remove the knob -1- using the Pliers:T40172C -2- straight in the -direction of the arrow- from the mount.

-- Push on the new knob opposite the -direction of the arrow- straight on the mount on the Front Information Display Control Head -J685-.

The knob must engage securely with the mount on the Front Information Display Control Head -J685-.
