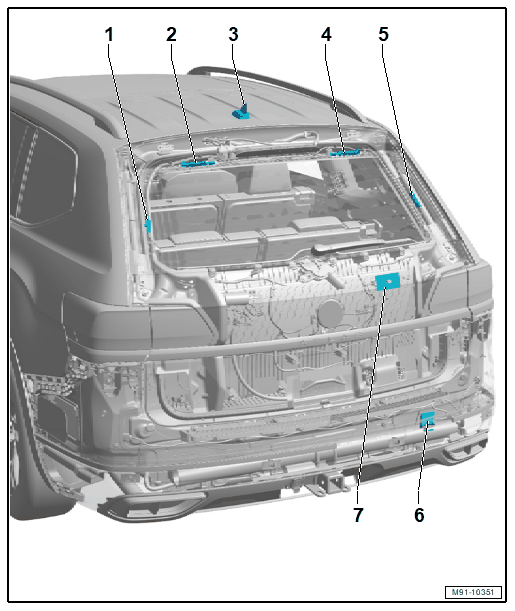

Component Location Overview - Antenna Systems

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

FM Frequency Filter in Positive Wire -R179-
- On the left window frame of the rear lid
- FM plus trap circuit
- Prevents the antenna signals from shorting to the ground
- Removing and Installing. Refer to FM FREQUENCY FILTER IN NEGATIVE WIRE R178 -- /FM FREQUENCY FILTER IN POSITIVE WIRE R179 --, REMOVING AND INSTALLING .
Left Antenna Module -R108-
- On the upper left of rear lid
- Related to the Radio Antenna 2 -R93-
- Impedance converter FM2
- Removing and Installing. Refer to ANTENNA MODULE, REMOVING AND INSTALLING .
Roof Antenna -RX5-
- Depending on the vehicle equipment with:
  - GPS Antenna -R50-
  - Satellite Tuner Antenna -R172-
  - GSM Antenna -R205-
  - Emergency Call Module Antenna -R263-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
Right Antenna Module -R109-
- On the upper right of the rear lid
- Related to the Antenna -R11-
- Impedance converter AM/FM1
- Removing and Installing. Refer to ANTENNA MODULE, REMOVING AND INSTALLING .
FM Frequency Filter in Negative Wire -R178-
- On the right window frame of the rear lid
- FM minus trap circuit
- Prevents the antenna signals from shorting to the ground
- Removing and Installing. Refer to FM FREQUENCY FILTER IN NEGATIVE WIRE R178 -- /FM FREQUENCY FILTER IN POSITIVE WIRE R179 --, REMOVING AND INSTALLING .
LTE Antenna 2 -R306-
- only for vehicles with emergency call module.
- Removing and Installing. Refer to LTE Antenna 2 -R306-, REMOVING AND INSTALLING .
AM Frequency Filter -R177-
- On the lower right of the rear lid
- Prevents the antenna signals from shorting to the ground
- Removing and Installing. Refer to AM Frequency Filter -R177-, REMOVING AND INSTALLING .
