Overview - Door Components

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The illustration shows the left side. The right side is identical.

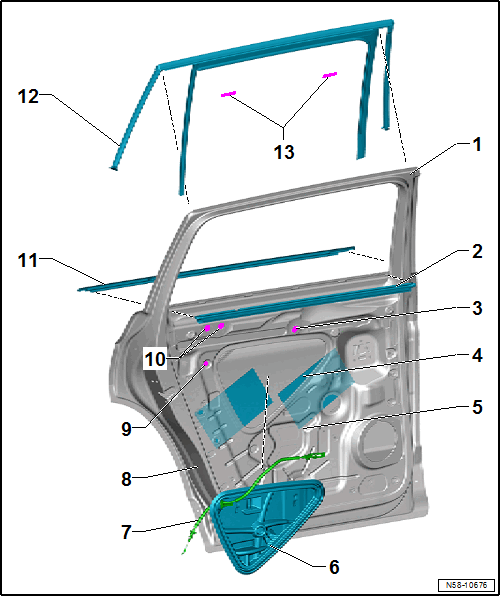

Fig 1: Exploded View Of Door Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Door
- Removing and Installing. Refer to DOOR, REMOVING AND INSTALLING .
- Adjusting. Refer to DOOR, ADJUSTING .
Inner Window Shaft Strip
- Removing and Installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Sticker
- Quantity: 1
- 32 mm diameter
- Use commercially available duct tape if needed
Insulation
- Quantity: 2
- Self-adhesive
- Installing:
  -- Cut to size if necessary, 250 mm x 160 mm. Position as shown in the image.

  -- Warm up using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A and then press firmly onto the outer door panel.
Sticker
- Quantity: 1
- 32 mm diameter
- Use commercially available duct tape if needed
Door Inner Cover
- Removing and Installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
- Always replace .
Release Cable
Sticker
- Quantity: 1
- Diameter: 40 mm
- Use commercially available duct tape if needed
Sticker
- Quantity: 1
- 28 mm diameter
- Use commercially available duct tape if needed
Sticker
- Quantity: 2
- 32 mm diameter
- Use commercially available duct tape if needed
Outer Window Shaft Strip
- Removing and Installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Window Guide
- Removing and Installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
Sticker
- Quantity: 2
- 15 mm x 50 mm
- Use commercially available duct tape if needed
