Overview - Front Door Window

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

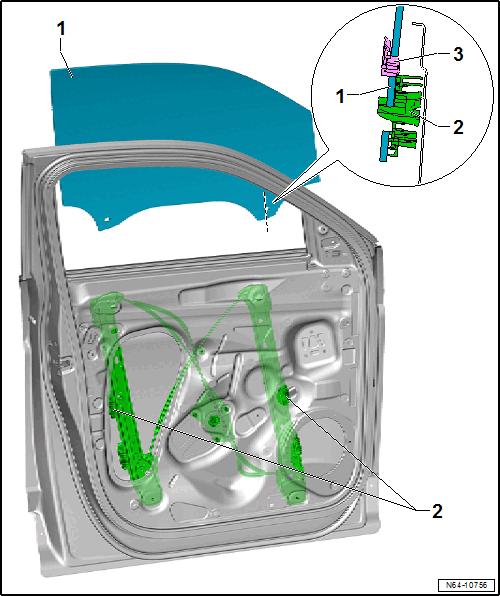

GWWN64-10756Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Door Window
  2. Window Regulator
  3. Catch
    • Component of the door window mount
    • Quantity: 2
    • For attaching the door window on the window regulator
