Adjusting Buffer, Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If necessary, replace the adjusting buffer. Refer to Adjusting Buffer, Replacing .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the striker. Refer to STRIKER, REMOVING AND INSTALLING .

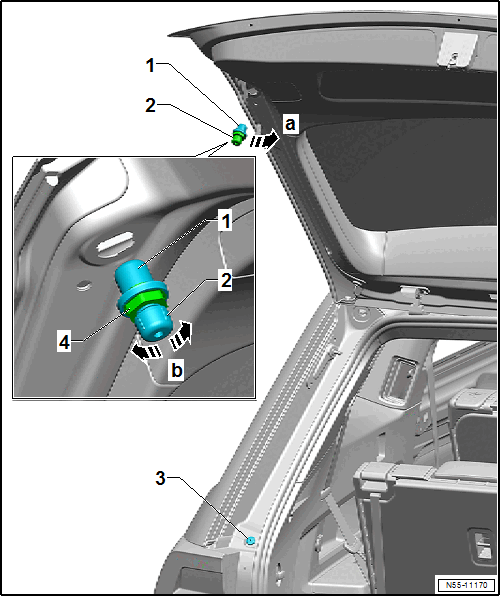

-- Turn the adjusting buffer -2- on the adjusting ring -4- until the rear lid and the side panel are at the same height in direction of -b arrows-.

Striker, Installing. Refer to STRIKER, REMOVING AND INSTALLING .

-- Close the rear lid and check the adjustment.
