Rear Lid Drive Unit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Sensor in Rear Lid Motor 1 -G745- is integrated in the Rear Lid Motor 1 -V444-.

The Sensor in Rear Lid Motor 2 -G746- is integrated in the Rear Lid Motor 2 -V445-.

If a new drive unit is installed, it must be programmed using the Vehicle Diagnostic Tester.

It is necessary to support the drive unit when removing the engine compartment lid.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connectors -5- for the lines of the drive unit on the inner D-pillar.

-- Remove the lines with the rubber grommet -4-.

-- Support the rear lid.

CAUTION:

Risk of damaging the spring clip by prying out further.

Tearing of the spring clip is possible.

- Never pry the spring clip completely out of the ball socket.

-- Press the drive unit to the ball stud.

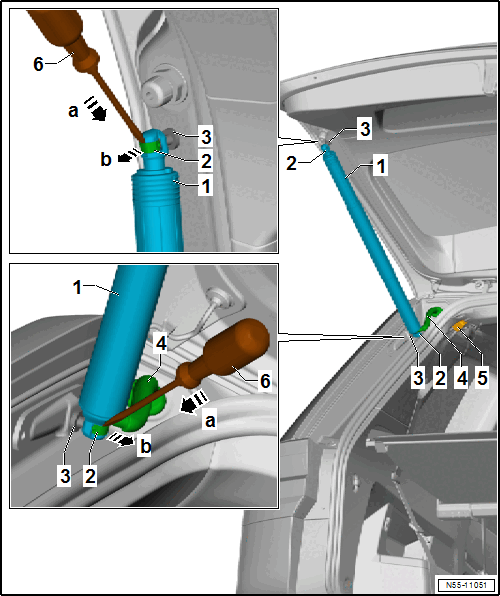

-- Guide a screwdriver -6- under the spring clips -2- in direction of -arrow a-.

-- The spring clip -2- opens by inserting the screwdriver -6- until the drive unit ball socket can be moved via the ball stud -3-.

-- Remove the drive unit -1- from the ball stud -3-.

After removing the drive unit remove the screwdriver -6- immediately again.

The spring clip -2- slides back into their installation position.
