Rear Lid Drive Unit, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

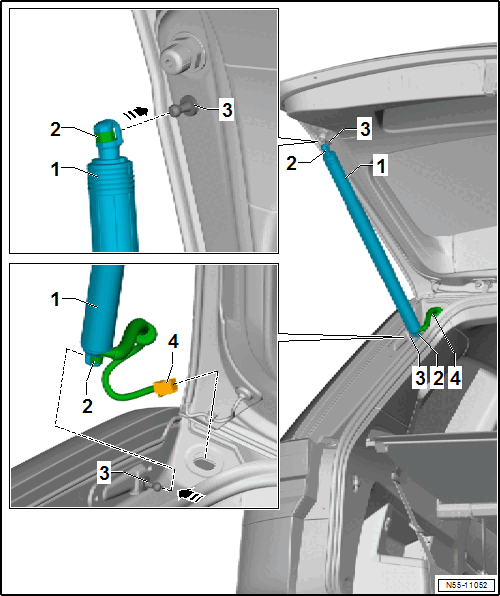

- The ball studs -3- are installed.
- The spring clip -2- is pushed back.
-- Push the drive unit -1- with the ball socket on the ball pin -3- in direction of -arrows- until they click into place with each other.
-- Route the lines with the rubber grommet -4- and carefully press in the thrust piece.
NOTE:
The grommet sealing lip must rest evenly all around on the metal.
-- Connect the connectors for the lines from the drive unit -1-.
