Pinch Protection Sensor -G673- AND Pinch Protection Sensor 2 -G753-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Only use Adhesive Remover:D 002 000 10 .
Make sure the adhesive surfaces are free of dust and grease.
Only remove the protective film right before assembly. The processing temperature is approximately 21 °C (69.8 °F).

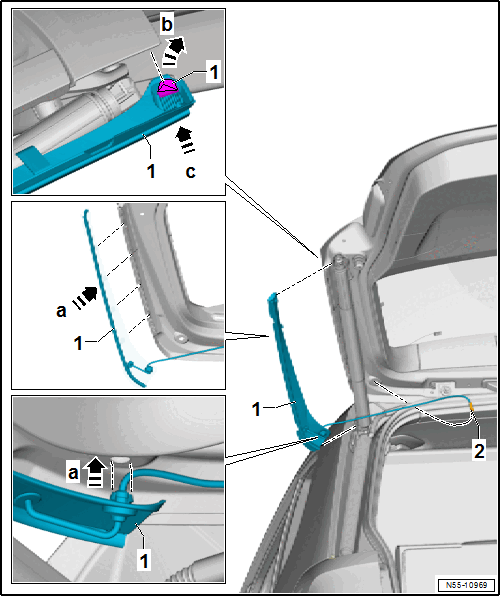

-- Install the sensor strip -1- in the rear lid in direction of -arrow a-.
-- Install the lines in the rear lid and carefully press in the rubber grommet in direction of -arrow a-.
-- Connect the connector -2-.
-- Remove the protective film on adhesive tape -3- in direction of -arrow b- and push the sensor strip in the area of the adhesive tape in direction of -arrow c- using force.
