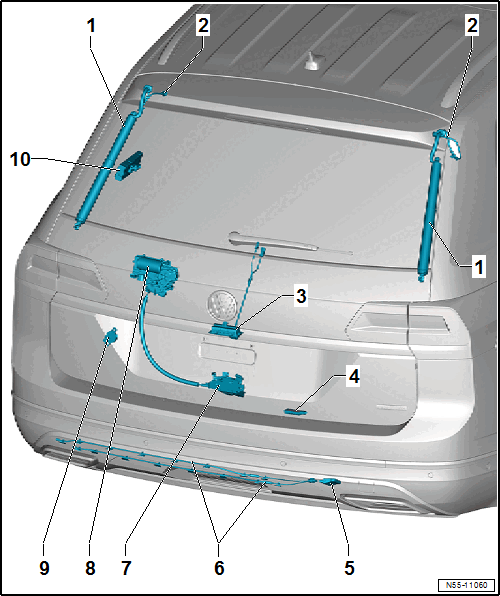

Overview - Electric Rear Lid Release
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Lid Motor 1 and 2 -V444/445-
- The Sensor in Rear Lid Motor 1 -G745- is integrated in the Rear Lid Motor 1 -V444-.
- The Sensor in Rear Lid Motor 2 -G746- is integrated in the Rear Lid Motor 2 -V445-.
- Rear Lid Drive Unit, Removing and Installing. Refer to REAR LID DRIVE UNIT, REMOVING AND INSTALLING .
- Connector
- Behind the D-pillar trim panel
- Rear Lid Handle -EX37-
- Removing and Installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
- Rear Lid Lock Button in Luggage Compartment -E406-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - KEYLESS ACCESS AUTHORIZATION SYSTEM .
- Power Rear Lid Opening Control Module -J938-
- Removing and installing. Refer to POWER REAR LID OPENING CONTROL MODULE -J938-, REMOVING AND INSTALLING .
- Power Rear Lid Opening Sensor -G750-
- Removing and installing. Refer to POWER REAR LID OPENING SENSOR -G750- /POWER REAR LID OPENING SENSOR 2 -G760-, REMOVING AND INSTALLING .
- Rear Lid Lock Unit -VX25-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Rear Lid Closing Aid -VX16-
- Removing and Installing. Refer to CLOSING ASSIST, REMOVING AND INSTALLING .
- Rear Lid Warning Buzzer -H32-
- One bolt: 2 Nm
- Attached in the rear lid
- Rear Lid Control Module -J605-
- Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
