Latch With Closing Assist, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Push the lever -6- all the way with the screwdriver -5- in the direction of -arrow c- and hold.
-- Thread the release cable -1- in the lever -2- in direction of -arrow a-.
-- Install the release cable -3- in the retainer -arrow b-.
-- Release the lever -6- and pull the release -7- in direction of -arrow d-.

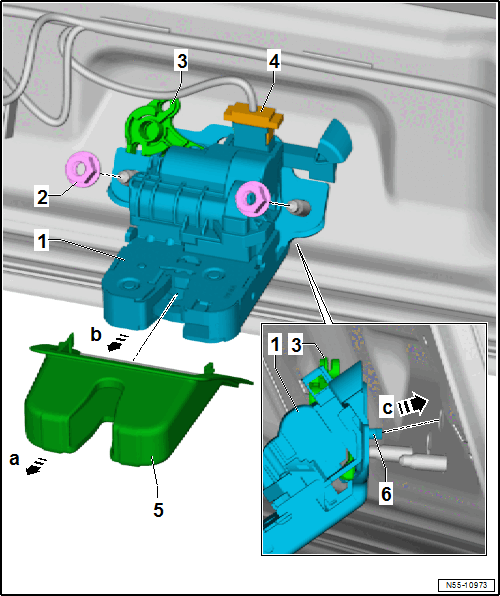

-- Push the latch -1- on the threaded pin until the retaining hooks -6- engage with the rear lid in direction of -arrow c-.
-- Tighten the hex nuts -2-.
-- Connect the connector -4- from the latch -1-.
- Perform a function test on the unlocking components before closing the rear lid.
