Closing Assist, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

If the rear lid does not open, use the emergency release inside the rear lid trim panel to open it manually. Refer to the appropriate Service Information.

-- Remove the rear lid trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

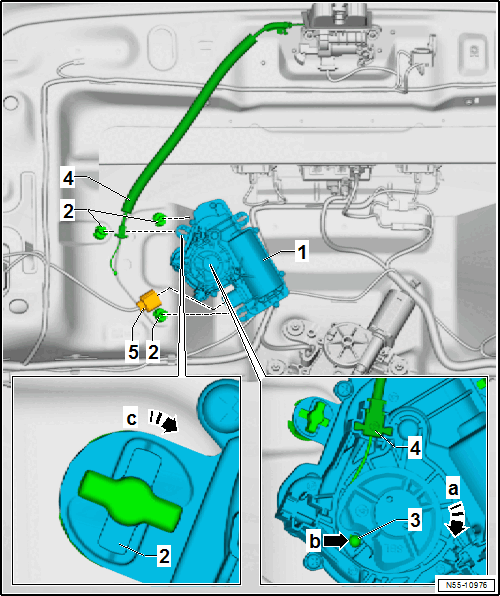

-- Disconnect the connector -5- on the closing assist -1-.

-- Turn the mount slightly in direction of -arrow a- so that the release cable tension is released.

-- Pry out the release cable -4- retainer from the closing assist -1-.

-- Pry out the release cables -3- from the mount -arrow b-.

-- Turn the clip -2- 90 degrees -arrow c-.

-- Remove the closing assist -1- from the clip -2-.

NOTE:

The clips -2- remain installed.

A new closing assist -1- is installed in the following (refer to NEW CLOSING ASSIST, INSTALLING ) and the clips -2- must be released.
